Recommended for Bookmarking: A Comprehensive Guide To Household Off-grid Inverters.

The home off-grid inverter technical guide

1. Core Technical Principles

Energy Conversion Flow: Off-grid inverters convert DC power from solar panels into AC power for household appliances while managing battery charging/discharging for 24/7 power supply.

Critical Control Technologies:

Dual-Loop Control: Stabilizes output voltage and suppresses harmonic distortion (THD<3%) caused by load fluctuations through voltage-current decoupling feedback.

MPPT Optimization: Dynamically tracks solar panels' maximum power point, increasing energy harvest by 30% vs. traditional PWM controllers.

2. Inverter Types & Applications

Type Key Advantage Limitation Typical Use Case

Pure Sine Wave Smooth waveform (THD<3%), compatible with all devices (e.g., medical equipment, motors) Higher cost (+30-50%) Full-time residences, premium RVs

Modified Sine Wave Low cost, ideal for basic loads High harmonic distortion (THD 15-30%), damages precision electronics Temporary power, lighting/heating

Microinverters Per-panel optimization, superior shade tolerance High unit cost, complex maintenance Complex rooftops, balcony PV systems

Low-Frequency High surge capacity (supports AC/tool startups) Bulky, lower efficiency (85-90%) Industrial systems, arctic regions

3. System Integration Design

Battery Compatibility:

LiFePO4: Supports 80-100% depth of discharge, >6,000 cycles, communicates with smart inverter BMS.

Lead-Acid: Low cost but only 50% DoD tolerance, requires maintenance.

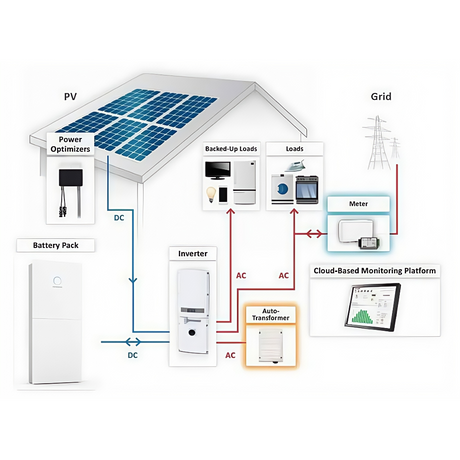

Hybrid Architecture:

Off-grid + Backup Generator: Automatic switchover during extended cloudy periods.

Grid Feedback (Hybrid models): Sell surplus energy to grid (e.g., UK Feed-in Tariff).

4. Real-World Case Studies

5.5kW Home System (Bluesun Case):

Components: 5.5kW inverter + 5.5kW solar panels + 10kWh lithium battery

Performance: 22kWh daily generation powers AC (3kW) + fridge (0.8kW) + lighting (0.5kW).

Cost Optimization Strategies:

Load Time-Shifting: Run high-consumption devices (water heaters/pool pumps) during peak sunlight hours, reducing battery dependence by 40%.

High-Efficiency Upgrades: Use energy-saving appliances (e.g., SEER＞18 AC) to cut peak load 30%.

5. Buyer's Guide

Power Calculation: Total load × 1.5 (safety margin), e.g.:

(Fridge 800W + AC 3000W + Lighting 300W) × 1.5 = 6.15kW → Select 6.5kW inverter.

Certifications & Warranty:

Essential: UL 1741 (NA), IEC 62109-2 (arc protection), CE (EU).

Warranty: 5-10 years for premium products (e.g., SRNE 10kW inverter).

6. Future Trends (2025+)

AI Energy Management: Predictive algorithms auto-adjust battery cycles based on weather forecasts.

Modular Scalability: Parallel connectivity (e.g., Bluesun 5.5kW units scale to 66kW) for home expansion.

Cost-Benefit Analysis

Item 3kW System 10kW System

Total Cost $12K-$18K $25K-$40K

Payback Period 4-6 years 5-8 years

Annual CO₂ Reduction 1.2 tons 3 tons

*Data: Northern California Off-Grid Installations (1993-2025)*
